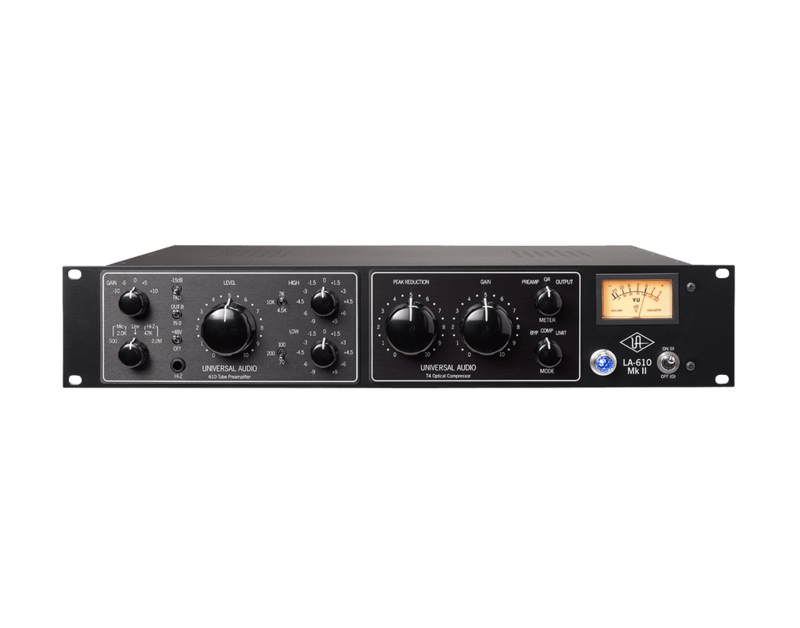

LA-610 MkII
Two-in-one tube channel strip pairing a 610-style all-tube mic preamp with a Teletronix LA-2A-style T4 opto compressor and a shelving tube EQ. Aimed at recording vocals, bass and acoustic guitar in project and home studios.
- All-tube mic preamp derived from the Bill Putnam 610 console
- Teletronix LA-2A-style T4 opto compressor
- High and low frequency shelving tube EQ
- Mic, line and Hi-Z instrument DI input (mono)
- Mk II adds true compressor bypass and larger metering
- Hand-assembled in the USA, 1-year limited warranty
Foto’s
5Advertenties
Nog geen advertenties van dit model
Als iemand een LA-610 MkII verkoopt, zie je hier de advertenties en de verkoopgeschiedenis.
Verkoop er zelf eenBeschrijving
The LA-610 Mk II is a mono recording channel built around two vintage circuits: an all-tube mic preamp derived from the Bill Putnam 610 console module, and a T4 electro-optical compressor modelled on the Teletronix LA-2A. A high and low frequency shelving EQ lets the tone be shaped further before the signal is recorded.
The preamp section has Gain and Level controls, variable impedance switching and an instrument DI input, so it can handle microphones, line sources and instruments. The Mk II revision adds a true compressor bypass, larger metering, increased output and an auto-switching power supply. The unit is hand-assembled in the USA and covered by a one-year limited warranty.
The channel takes mono mic, line or Hi-Z sources and is intended to sit in front of an audio interface, for example during tracking of vocals, bass or acoustic guitars. In the maker's comparison table it is listed with the UA 610 tube preamp and EQ plus a splittable opto compressor as its key features.
Video
Specificaties
- Merk
- Universal Audio
- Model
- LA-610 MkII
- Categorie
- Studio › Voorversterkers en outboard
Inputs
- Channels
- Mono
- Input types
- Mic / Line / Hi-Z
- Instrument DI
- Yes
- Impedance
- Variable impedance switching
Audio
- Mic preamp
- All-tube, derived from Bill Putnam 610 console module
- Preamp controls
- Gain and Level
- Compressor
- Teletronix LA-2A-style T4 opto-compressor
- Compressor type
- Splittable opto compressor
- Compressor bypass
- True bypass
- EQ
- High and Low frequency shelving tube EQ
- Metering
- Larger metering (Mk II)
- Output
- Increased output (Mk II)
Power
- Power supply
- Auto-switching
Physical
- Construction
- Hand-assembled in the USA
- Components
- Audiophile components
Software
- Key feature 1
- UA 610 Tube Preamp & EQ
- Key feature 2
- Splittable Opto Compressor
Warranty
- Warranty
- 1-Year limited warranty
