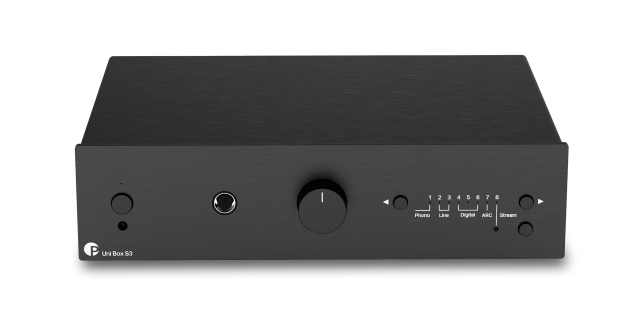

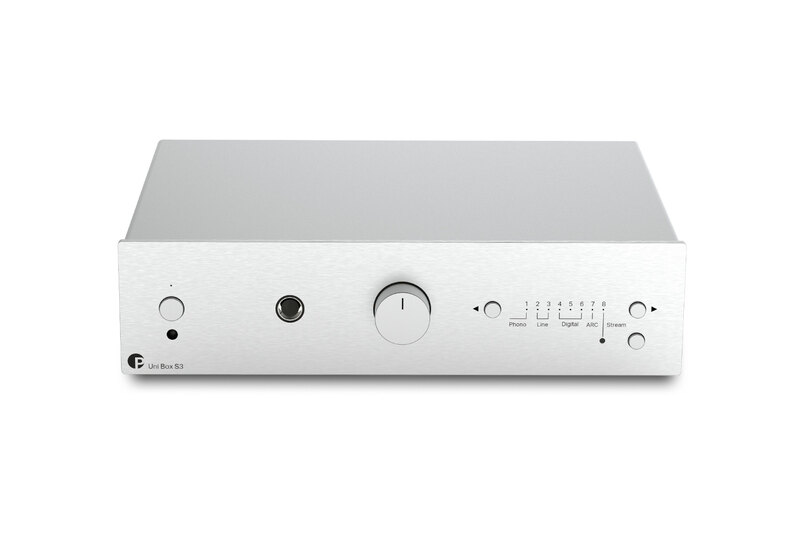

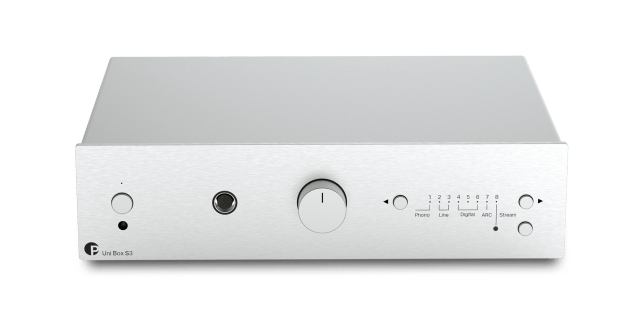

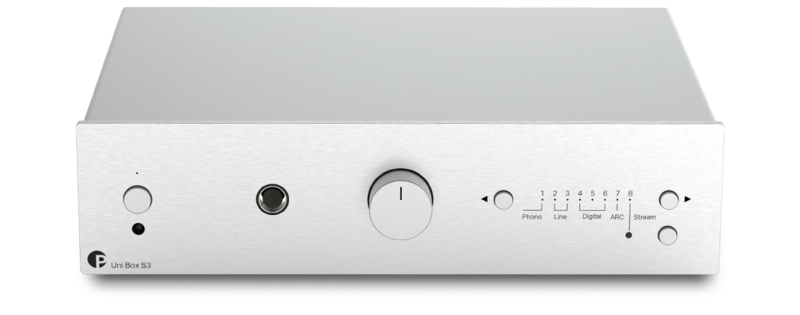

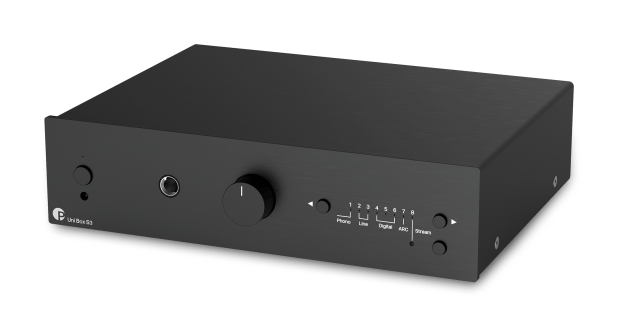

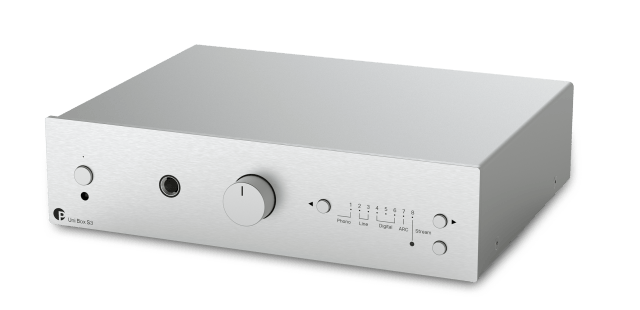

Uni Box S3
Compact integrated stereo amplifier with a built-in WiiM-powered streaming input, a phono MM input and a headphone output. It suits small hi-fi systems that combine analogue sources with network streaming.
- 2x 23 W at 8 ohms, 2x 40 W at 4 ohms
- Phono MM input plus two analogue RCA pairs
- WiiM OS streaming on input 8, controlled via Pro-Ject Home app
- Cirrus Logic CS4344 DAC, 24 bit / 192 kHz
- Wi-Fi 5 and Bluetooth 5.0 (SBC, AAC), ARC input
- Black or silver finish; 206x55x153 mm, 1100 g
Foto’s
8Advertenties
Nog geen advertenties van dit model
Als iemand een Uni Box S3 verkoopt, zie je hier de advertenties en de verkoopgeschiedenis.
Verkoop er zelf eenBeschrijving
The Uni Box S3 is a small integrated amplifier with a fully analogue pre-amp and power-amp section, housed in an aluminium case. Analogue sources such as a turntable are not digitised. The amplifier is rated at 2x 23 W into 8 ohms and 2x 40 W into 4 ohms, and it has a separate headphone output and a variable line output.
Streaming is handled by WiiM OS on input 8, with a Cirrus Logic CS4344 DAC working at up to 24 bit / 192 kHz. The Pro-Ject Home app controls the streaming options and guides the Wi-Fi setup. A long press of the Stream button on the front panel resets the Wi-Fi connection. Connected sources such as a turntable, CD player or TV can also be streamed to other compatible streamers.
Inputs include two RCA pairs, a phono MM input, coaxial, two Toslink and HDMI ARC, plus Wi-Fi 5 and Bluetooth 5.0 with SBC and AAC. Speakers connect via 4 mm banana plugs, spade connectors or bare wire. It comes in black or silver.
Video
Specificaties
- Merk
- Pro-Ject
- Model
- Uni Box S3
- Categorie
- Hi-Fi en home-audio › Versterkers
Audio
- Power output
- 2x 23W / 40W at 8 / 4ohms (1% THD)
- Frequency response (20Hz - 20kHz)
- < 0,4 - 0,9dB @4ohms
- Channel separation
- - 67dB at 10kHz
- Signal to noise ratio
- 94dB (9dB-'A' weighted) @4ohm
- THD
- < 0,05% at 10W / 4 ohms
- Power amplifier
- Texas Instruments TPA3221DDV
- DA-converter
- Cirrus Logic CS4344 24bit/192kHz
- Headphone amplifier
- 70mW at 32ohm (1%THD)
Inputs
- Analogue inputs
- 2x pair RCA, 1x phono MM (RCA)
- Digital inputs
- RCA coax, 2 x Toslink, ARC, WiFi/BT
Outputs
- Variable output
- 1x pair RCA
- Speaker connectors
- 4mm Ø banana plugs, spades connectors or naked wire
Connectivity
- Wireless connectivity
- Wi-Fi 5, 802.11 b/g/n/ac 2.4 G and 5G dual bands, Bluetooth 5.0, SBC and AAC
- Streaming platform
- WiiM OS
- Control app
- Pro-Ject Home
Power
- Power supply
- 20V/3A DC; 100 - 240V, 50/60Hz
- Standby power consumption
- < 0,5 watts
Physical
- Dimensions WxHxD
- 206x55x153 (176mm with sockets)
- Weight
- 1100 g without power supply
- Finish
- Black, Silver
