T1 EVO Phono
Belt-drive turntable with a built-in switchable phono preamp, an 8.6-inch one-piece aluminium tonearm and a pre-fitted Ortofon OM 10 moving magnet cartridge. Aimed at entry-level hi-fi listeners who want a ready-to-play vinyl setup.
- Built-in switchable phono preamp
- Belt drive, electronic 33/45 rpm speed change
- 8.6" one-piece aluminium tonearm
- Ortofon OM 10 MM cartridge pre-fitted
- 8 mm blasted-glass platter with felt mat
- Black, white or walnut finish; made in Europe
Foto’s
5Advertenties
Nog geen advertenties van dit model
Als iemand een T1 EVO Phono verkoopt, zie je hier de advertenties en de verkoopgeschiedenis.
Verkoop er zelf eenBeschrijving

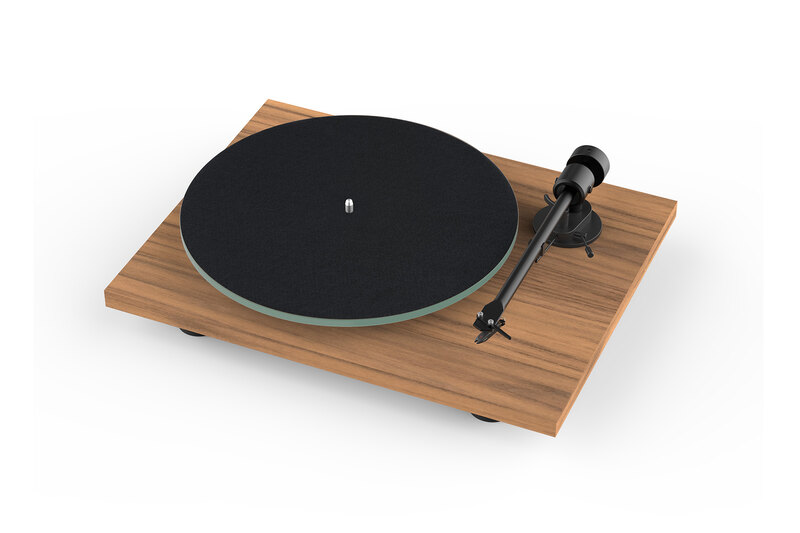

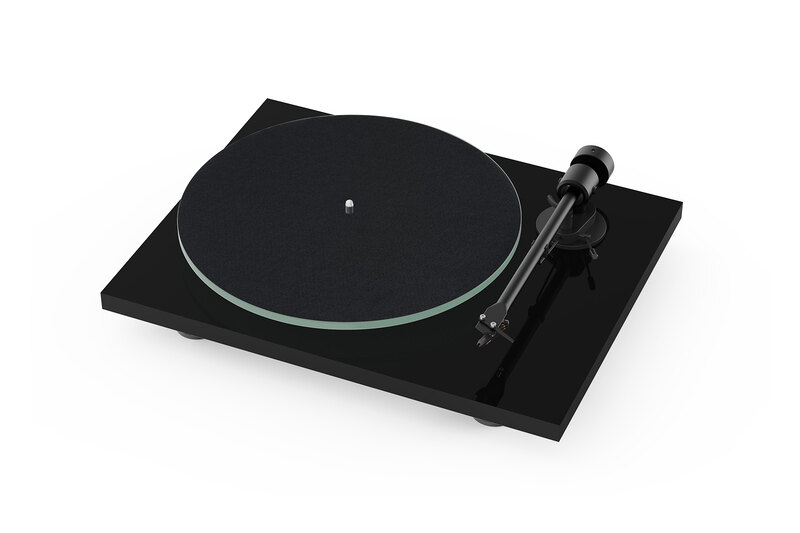

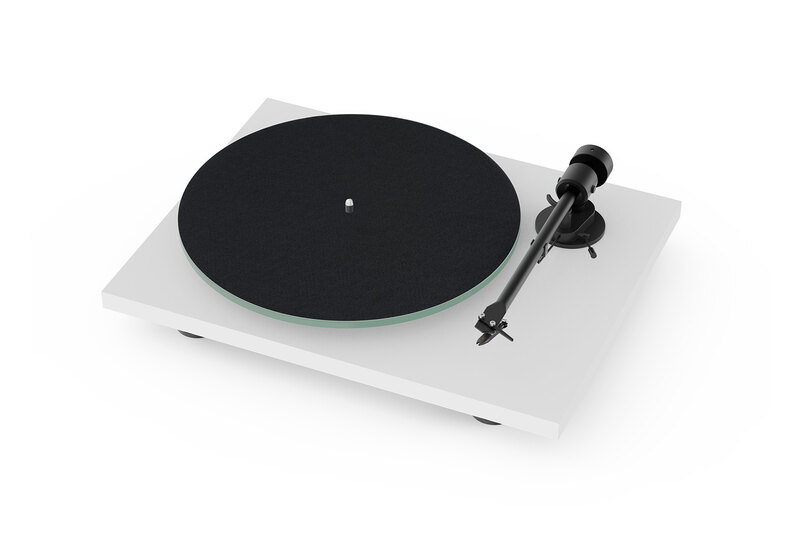

The T1 EVO Phono is a two-speed belt-drive turntable with electronic switching between 33 and 45 rpm. The CNC-machined plinth is built without plastic parts and without hollow spaces inside, and it comes in High Gloss Black, Satin White or Walnut. An 8 mm blasted-glass platter with a felt mat sits on a larger sub-platter, which runs in a main bearing with a hardened steel axle and brass bushing.

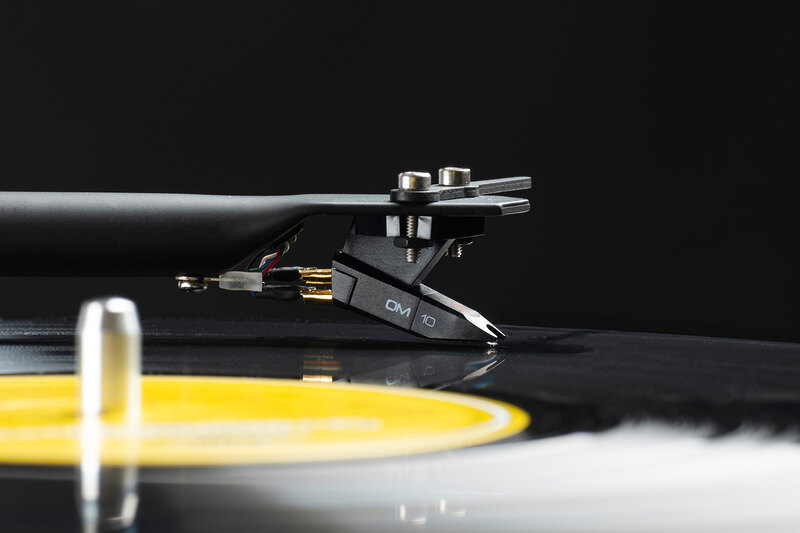

The one-piece aluminium tonearm has an integrated headshell, low-friction bearings and an effective length of 218.5 mm. It is delivered with an Ortofon OM 10 moving magnet cartridge with an elliptical stylus, already adjusted, with tracking force pre-set to 17.5 mN. Vibration-absorbing feet and a dustcover with adjustable hinges are included.

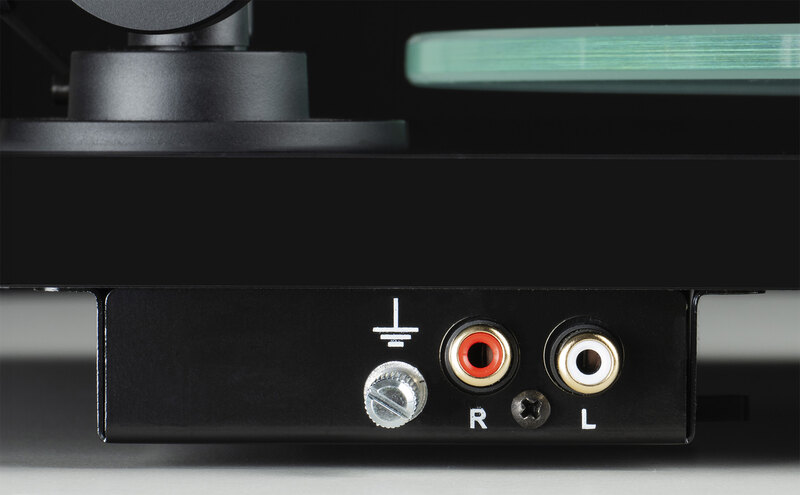

A switchable phono preamplifier is built in, so the turntable can feed either a phono input or a line input through its RCA outputs. A low-capacitance Connect it Phono E RCA cable is supplied, and power comes from an external 15 V DC supply that accepts 110 to 240 V mains.
Video
Specificaties
- Merk
- Pro-Ject
- Model
- T1 EVO Phono
- Categorie
- Hi-Fi en home-audio › Platenspelers
Drive
- Speed
- 33, 45 (electronic speed change)
- Principle
- Belt drive
- Speed variance
- 33: 0.7% 45: 0.6%
- Wow & Flutter
- 33: 0.25% 45: 0.23%
- Signal to noise
- 65dB
Platter and bearing
- Platter
- Heavy 8mm, blasted-glass platter with felt mat
- Main bearing
- Stainless steel/brass
Tonearm
- Tonearm
- 8.6” aluminium
- Effective arm length
- 218.5 mm
- Overhang
- 22.0 mm
- Effective tonearm mass
- 8.0 g
- Counterweight for mass
- 5 - 10g (pre-mounted)
- Tracking force range
- 0 - 50mN (17.5 mN pre-adjusted)
Cartridge
- Cartridge
- Ortofon OM 10 Moving Magnet, elliptical diamond stylus
Outputs
- Outputs
- RCA
- Phono preamp
- Built-in, switchable
Power
- Power Supply
- 110 - 240V/50, 60Hz; 15 V DC 800mA
- Power consumption
- 4.5 Watt max
Physical
- Dimensions
- 415x100x335 mm (WxHxD)
- Weight
- 3.8 kg net
- Finishes
- High Gloss Black, Satin White, Walnut
In the box
- Included accessories
- dustcover, feltmat, power supply, high-quality phono/line RCA cable
- Cable
- Connect it Phono E RCA
