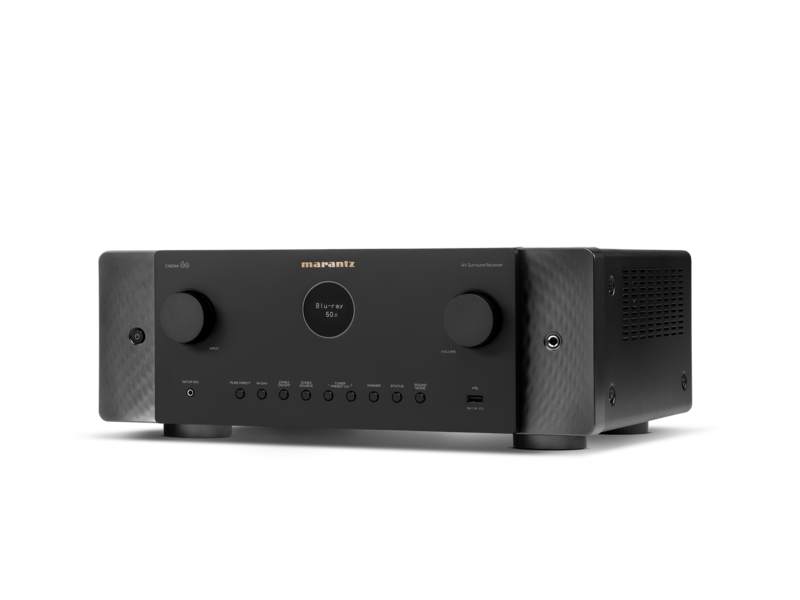

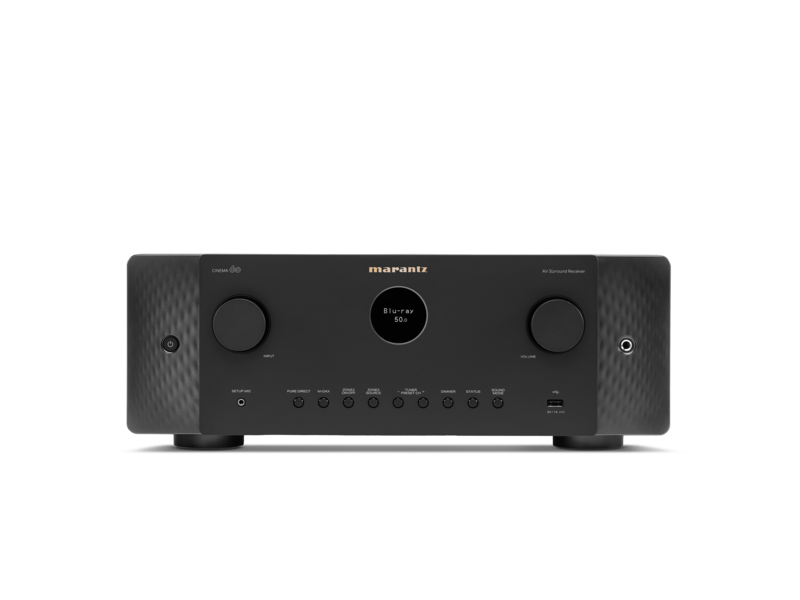

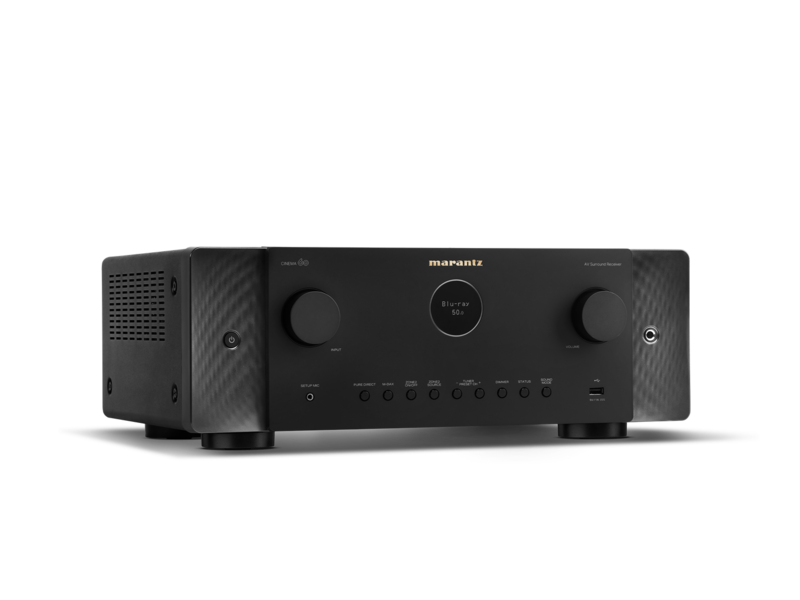

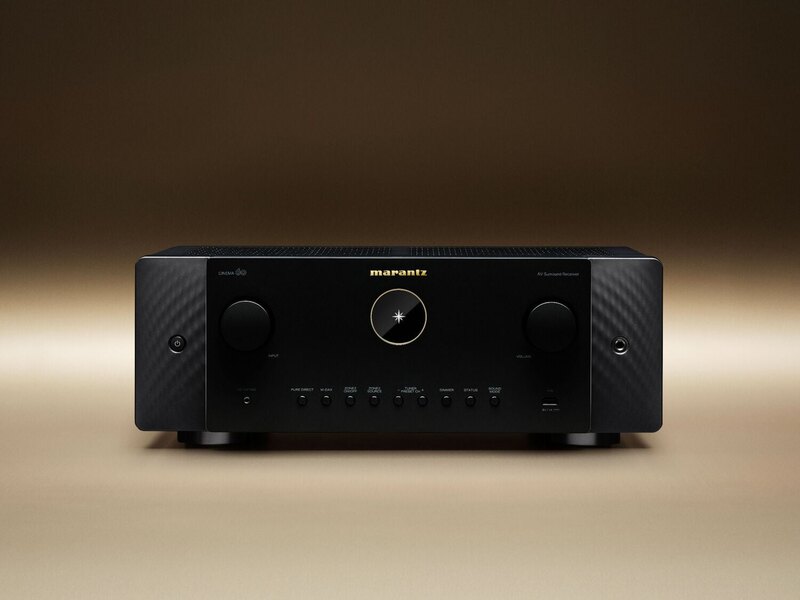

CINEMA 60
The CINEMA 60 is a 7.2-channel AV receiver with 100 W per channel, Dolby Atmos and DTS:X decoding, and built-in HEOS streaming. It suits home-cinema setups that need six HDMI inputs, 8K pass-through and room correction.
- 7 powered channels, 100 W per channel at 8 ohms
- Dolby Atmos, DTS:X and DTS Neural:X decoding
- 6 HDMI inputs (3 with 8K), 2 outputs with eARC
- Audyssey MultEQ XT room correction
- HEOS, AirPlay 2, Bluetooth and Roon tested
- Phono MM input and AM/FM tuner
Foto’s
8Advertenties
Nog geen advertenties van dit model
Als iemand een CINEMA 60 verkoopt, zie je hier de advertenties en de verkoopgeschiedenis.
Verkoop er zelf eenBeschrijving
The CINEMA 60 is a Class A/B AV receiver with seven powered channels, rated at 100 W per channel into 8 ohms (20 Hz–20 kHz, 2-channel drive). It decodes Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio, along with DTS:X and DTS Neural:X. Dolby Atmos Height Virtualization is also supported. Audyssey MultEQ XT handles room correction, with Dynamic EQ and Dynamic Volume.

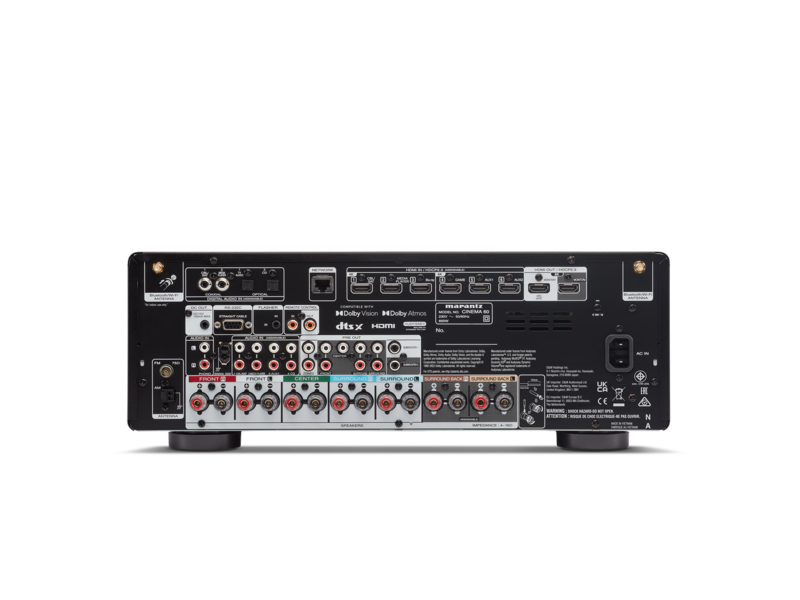

The HDMI section has six inputs, three of which support 8K, and two outputs, one of them eARC. It handles 8K/60Hz and 4K/120Hz, HDR10+, Dolby Vision and HLG. It also passes ALLM, VRR and QFT for gaming. Other connections include a phono (MM) input, optical and coaxial digital inputs, a front USB-A port, an AM/FM tuner and a 7.2 preamp output.
Network functions come from HEOS multi-room streaming over Ethernet or Wi-Fi, with AirPlay 2, Bluetooth, Spotify Connect and Roon tested compatibility. A second zone is available. Control options are IP, RS232, the Marantz AVR Remote app and the HEOS app. Voice control works with Alexa, Google Assistant and Apple HomePod.
Specificaties
- Merk
- Marantz
- Model
- CINEMA 60
- Categorie
- Hi-Fi en home-audio › Versterkers
Amplifier
- Powered channels
- 7
- Power output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch drive)
- 100 W
- Power output (6 ohm, 1 kHz, 0.7% 2ch drive)
- 140 W
- Power output (6 ohm, 1 kHz, 10% 1ch drive)
- 200 W
- Amplifier topology
- Class A/B
- Max processing (preamp) channels
- 7.1
Inputs
- HDMI in / out
- 6 / 2
- Analog in
- 4
- Phono (MM) in
- Yes
- Digital in: optical / coaxial
- 2 / 2
- Front input
- USB-A
Outputs
- Multichannel preamp out
- 7.2
- Subwoofer out
- 2
- Speaker terminals
- 7
- Multi-room out: analog / digital
- 1 / 0
HDMI
- HDMI inputs supporting 8K
- 3 of 6
- Max resolution @ framerate
- 8K/60Hz, 4K/120Hz
- Audio return channel
- ARC, eARC
- HDCP
- 2.3
- Video dynamic range
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
Audio
- Surround formats (Dolby)
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
- Surround formats (DTS)
- DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
- Room correction
- Audyssey MultEQ XT
- Lossless file support
- FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
- DSD audio
- 2.8 MHz / 5.6MHz
Connectivity
- Ethernet
- Yes
- Wi-Fi
- Yes
- Bluetooth
- Yes
- AirPlay
- AirPlay 2
- Streaming
- HEOS, Spotify Connect, TuneIn, Amazon Music, TIDAL, Deezer
- Control connectivity
- IP Control / RS232 Control / Web Control / App Control
- Multi-room zones
- 2
Power
- Power consumption
- 650 W
- No-sound consumption (ECO on/off)
- 45 / 75 W
- Standby consumption
- 0.2 W
Physical
- Dimensions without antenna (W x D x H)
- 442 x 343 x 165 mm
- Weight
- 10.9 kg
- Colour
- Black
- Front display
- Porthole OLED
In the box
- Included items
- Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 external detachable antennas, AC cord
