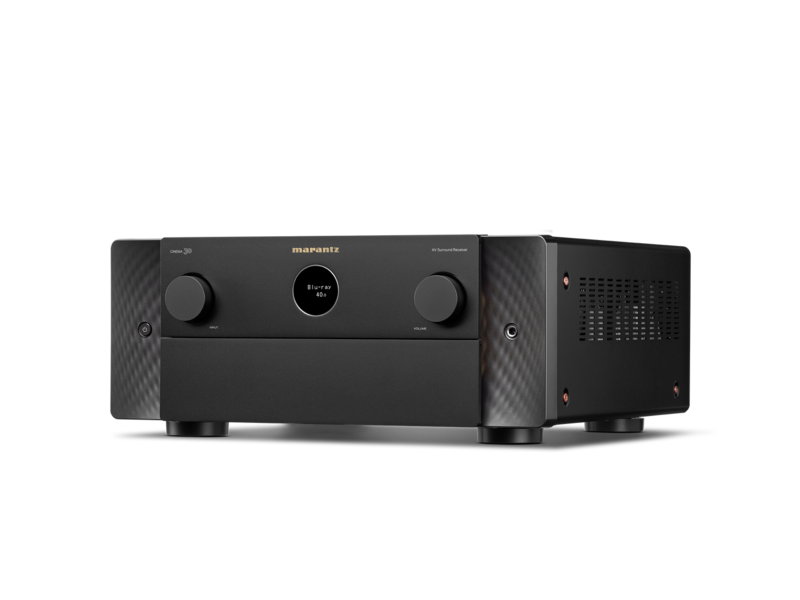

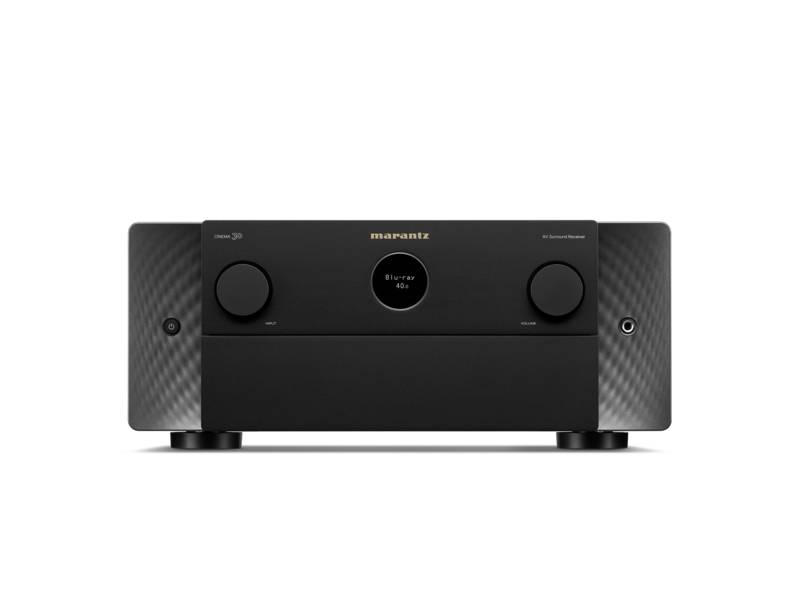

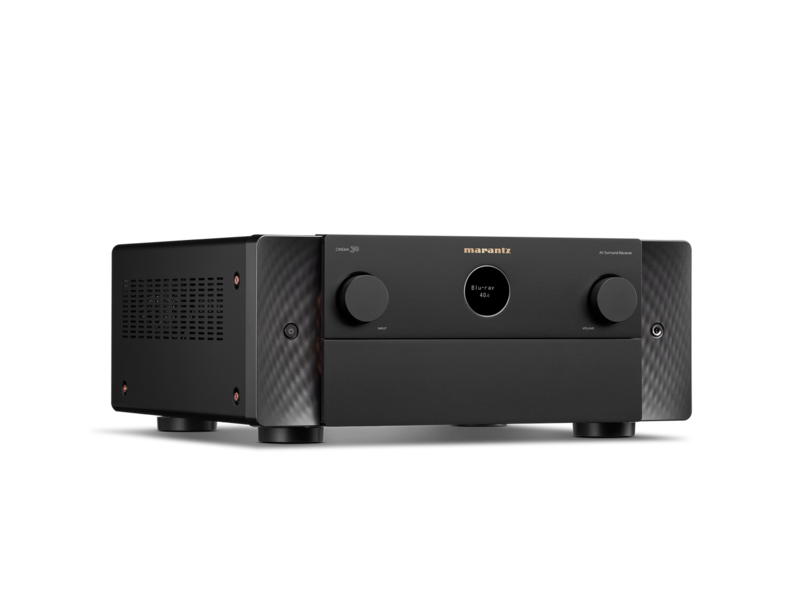

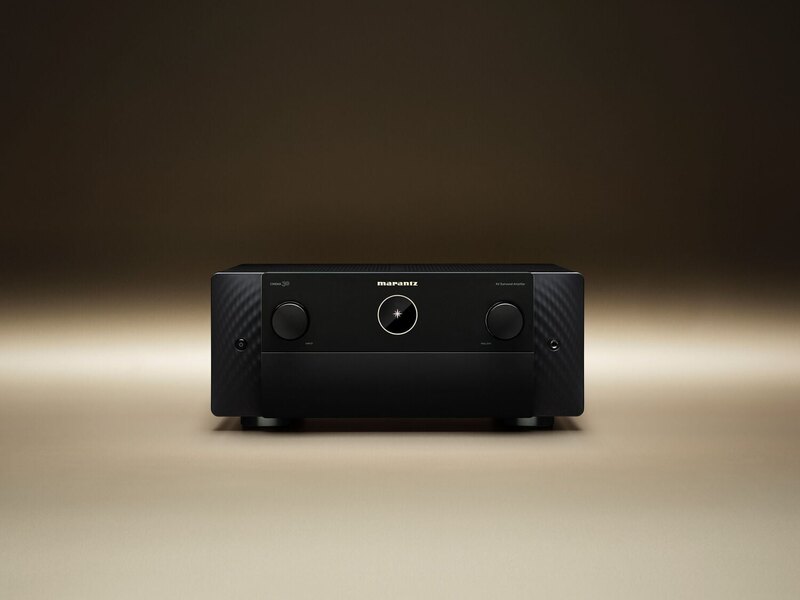

CINEMA 30
11.4-channel AV receiver with 140 W per channel, Dolby Atmos and DTS:X Pro decoding, seven 8K HDMI inputs and built-in HEOS streaming. It is aimed at large home cinema systems that need high power and extensive multichannel preamp outputs.
- 11 powered channels, 140 W per channel (8 ohm, 0.05%)
- Processes up to 13.4 channels with 7.2 preamp outputs
- 7 HDMI inputs, 3 outputs, eARC, 8K/60 Hz and 4K/120 Hz
- Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced
- Audyssey MultEQ XT32; Dirac Live upgradable
- HEOS, AirPlay 2, Bluetooth, Wi-Fi and Ethernet
Foto’s
8Advertenties
Nog geen advertenties van dit model
Als iemand een CINEMA 30 verkoopt, zie je hier de advertenties en de verkoopgeschiedenis.
Verkoop er zelf eenBeschrijving
The CINEMA 30 is a Class A/B AV receiver with 11 powered channels, a discrete power amplifier and a toroidal power supply transformer. Its amplifier section uses a separate HDAM-SA2 module and a copper-plated chassis. It processes up to 13.4 channels and decodes Dolby Atmos, Dolby TrueHD, DTS:X, DTS:X Pro and Auro-3D. IMAX Enhanced is supported.
On the video side it has seven HDMI inputs and three outputs, with 8K/60 Hz and 4K/120 Hz support, HDR10+, Dolby Vision, HLG, VRR, ALLM and eARC. Room correction is by Audyssey MultEQ XT32, with Dirac Live support available as an upgrade. A phono (MM) input, optical and coaxial digital inputs, a front USB-A port and an FM tuner with RDS cover other sources.
HEOS provides multiroom streaming over Ethernet or Wi-Fi, together with AirPlay 2, Bluetooth, Spotify Connect, TuneIn and several streaming services, and Roon compatibility. Two zones are available, and control options include IP, RS-232, web and app control, plus Alexa, Google Assistant and Apple HomePod voice control. It comes in black or silver-gold.
Specificaties
- Merk
- Marantz
- Model
- CINEMA 30
- Categorie
- Hi-Fi en home-audio › Versterkers
Amplifier
- Powered channels
- 11
- Power output (8 ohm, 20 Hz - 20 kHz, 0.05%, 2ch drive)
- 140 W
- Power output (6 ohm, 1 kHz, 0.7%, 2ch drive)
- 175 W
- Power output (6 ohm, 1 kHz, 10%, 1ch drive)
- 250 W
- Amplifier topology
- Class A/B
- Max processing (preamp) channels
- 13.4
Surround formats
- Dolby
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
- DTS
- DTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X
- Other formats
- IMAX Enhanced, Auro 3D
Inputs
- HDMI in
- 7
- Composite video in
- 2
- Component video in
- 1
- Digital in: optical / coaxial
- 2 / 2
- Phono (MM) in
- Yes
- Front input
- USB-A

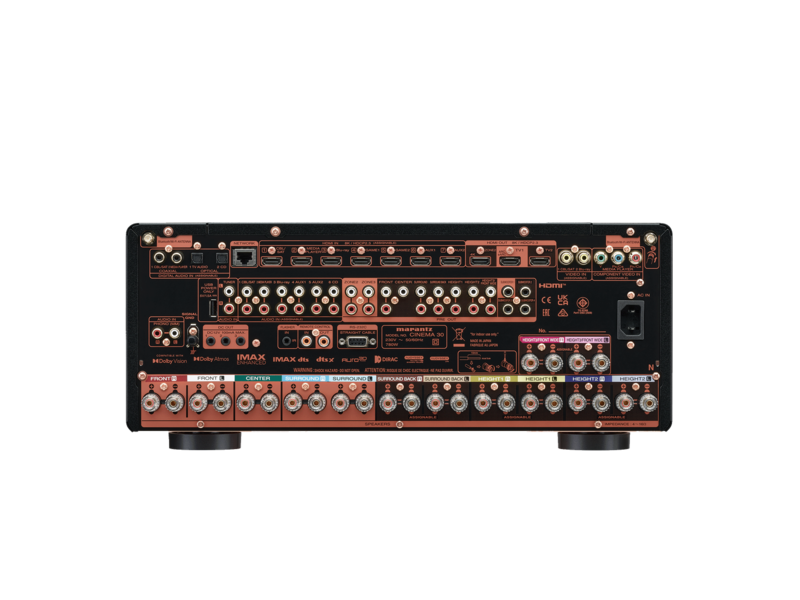

Outputs
- HDMI out
- 3
- Multichannel preamp out
- 7.2
- Subwoofer out
- 4 (independent)
- Speaker terminals
- 13
- Multi-room out: analog / digital
- 2 / 0
- DC trigger out
- 3
HDMI
- HDMI 2.1 8K/60 Hz and 4K/120 Hz
- Yes / Yes
- Audio return channel
- ARC, eARC
- HDR formats
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
- HDMI upscaling
- 1080P/4K to 8K
- HDCP 2.3
- Yes
Room correction
- Audyssey
- MultEQ XT32
- Dirac Live
- Upgradable
Connectivity
- Ethernet
- Yes
- Wi-Fi
- Yes
- Bluetooth
- Yes
- AirPlay
- AirPlay 2
- Streaming
- HEOS, Spotify Connect, TuneIn, Amazon Music, TIDAL, Deezer
- Control
- IP / RS232 / Web / App
- Multi-room zones
- 2
Audio file support
- Lossless formats
- FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
- DSD audio
- 2.8 MHz / 5.6 MHz
Power
- Power consumption
- 780 W
- Standby consumption
- 0.2 W
Physical
- Dimensions without antenna (W x D x H)
- 442 x 447 x 189 mm
- Weight
- 19.4 kg
- Colors
- Black / Silver-Gold
In the box
- Included

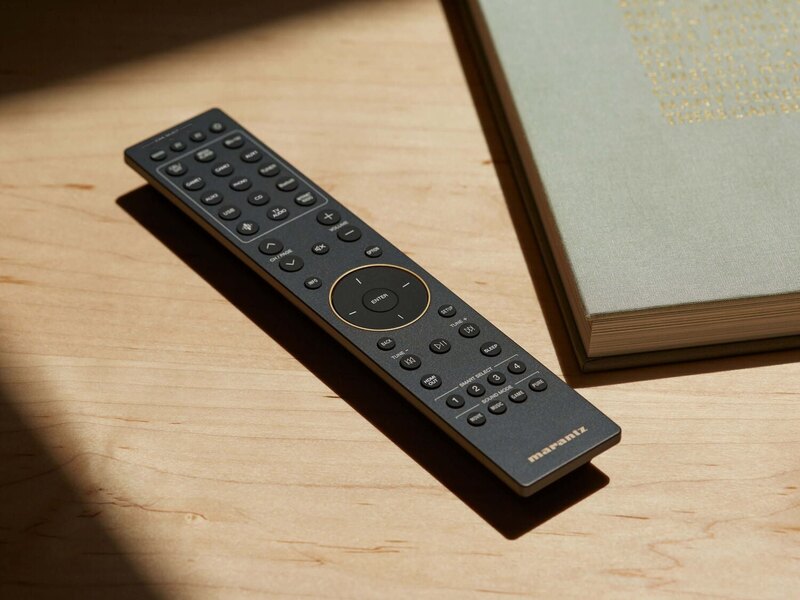

- Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 external detachable antennas, AC cord
