DLM12

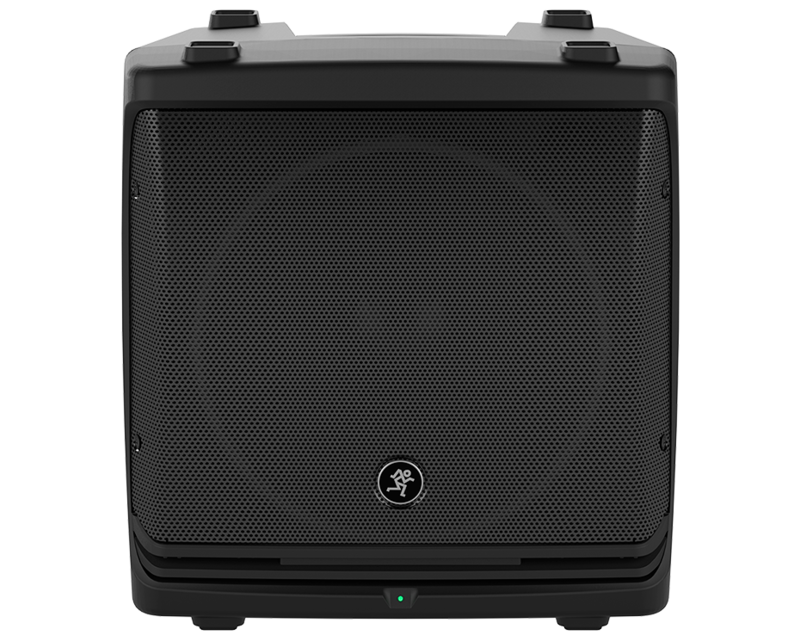

The DLM12 is an active two-way loudspeaker built around a 12" low-frequency woofer and a 1.75" high-frequency compression driver. Both sit in a vertically aligned, common-magnet arrangement the maker calls TruSource, and Class-D amplification supplies 2000 W of system power. The cabinet is PC-ABS with a steel grille, a top carry handle and an integrated kickstand so it can also serve as a floor monitor.

An onboard DL2 digital mixer with an OLED screen provides two input channels, each with level, 3-band EQ and effects control. There are 16 channel effects, including reverb, chorus and delay. The inputs are XLR/TRS combo and dual RCA, covering mic, line, stereo and instrument sources. System processing includes a multi-band feedback destroyer, six speaker modes, alignment delay up to 300 ms, three memory locations for venue settings and Smart Protect DSP that guards the amplifier and driver.

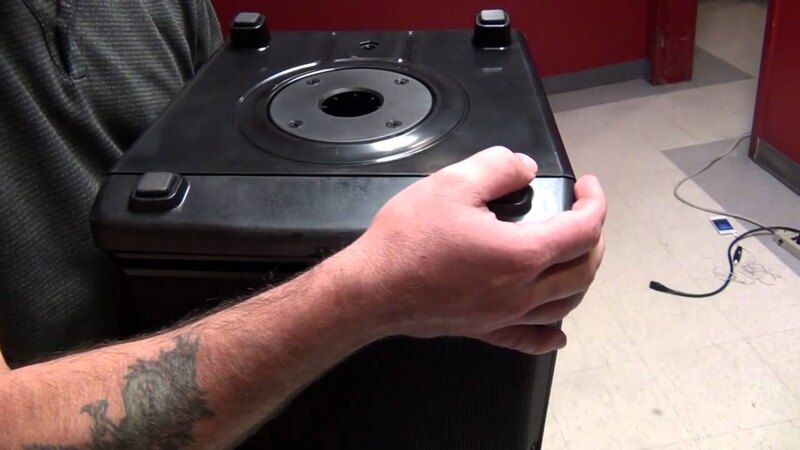

For mounting, the speaker can sit on a tripod, be flown using standard M10 rigging hardware, or be fixed to a wall with the SWM300 articulated arm. The enclosure is about one third smaller than a traditional two-way design and stacks for storage.
