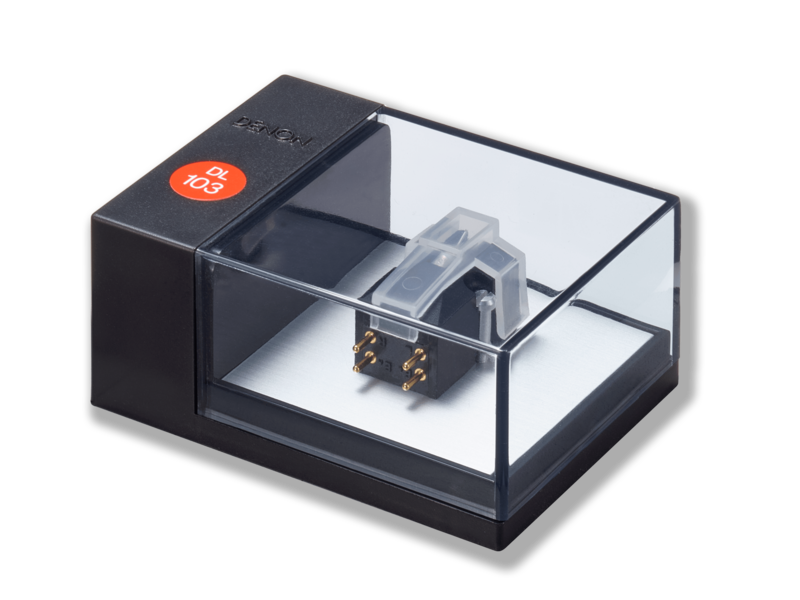

DL-103
The DL-103 is a low-output moving coil phono cartridge from Denon, originally designed in 1964 and still produced. It suits vinyl listeners who want an MC cartridge for medium-to-high-mass tonearms.
- Moving coil (MC), low output
- Output voltage 0.3 mV
- Frequency range 20 Hz - 45 kHz
- Output impedance 40 ohms
- Weight 8.5 g
- Stylus is not replaceable
Foto’s
8Advertenties
Nog geen advertenties van dit model
Als iemand een DL-103 verkoopt, zie je hier de advertenties en de verkoopgeschiedenis.
Verkoop er zelf eenBeschrijving

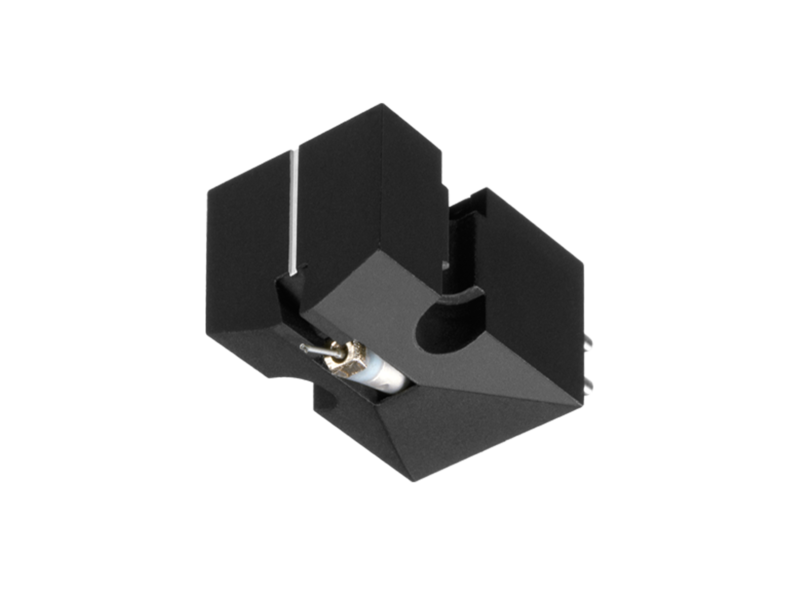

The DL-103 is a moving coil (MC) cartridge for turntables. The design dates from 1964 and remains in production. It is a low-output MC type with a 0.3 mV output voltage and a 40 ohm output impedance, so it needs a phono stage that accepts low-output moving coil cartridges.
The cartridge has low compliance and was originally intended for medium-to-high-mass tonearms. The maker confirms it can work with a 16 g effective-mass arm and, with a headshell shim, with the lighter Rega-style arm. Frequency response is stated as 20 Hz to 45 kHz, and the cartridge weighs 8.5 g.
The stylus is not replaceable, as is usual for moving coil designs. For a phono stage with a variable MC impedance setting, the maker suggested 50 ohms in one case, though many users choose the setting by ear. The cartridge is handspun in Japan.
Video
Specificaties
- Merk
- Denon
- Model
- DL-103
- Categorie
- DJ-apparatuur › Elementen en naalden
Audio
- Type
- MC
- Output level
- Low output moving coil
- Output voltage
- 0.3 mV
- Frequency range
- 20 Hz - 45 kHz
- Output impedance
- 40 ohms
Physical
- Weight
- 8.5 g
- Replaceable stylus
- No
- Compliance
- Low
- Origin
- Handspun in Japan
Compatibility
- Suited tonearm mass
- Medium-to-high mass
- Phono stage
- Low-output MC input
- Original design year
- 1964
- Product line position
- Premium sound
