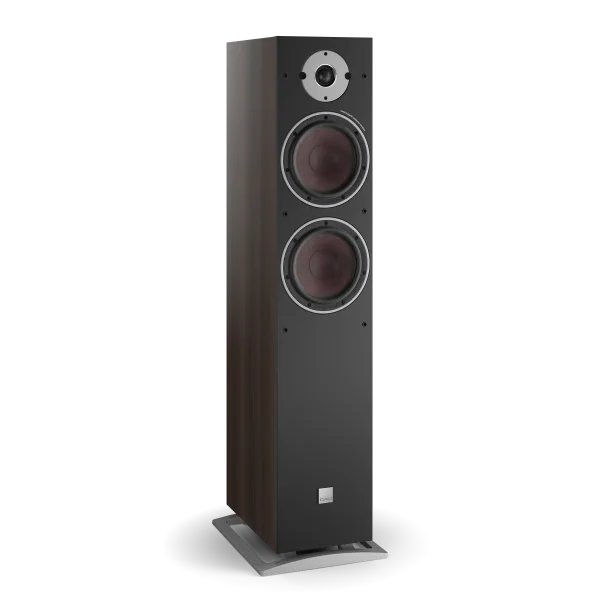

OBERON 7 C
The OBERON 7 C is an active, wireless floorstanding speaker with two 7-inch bass/mid drivers and a 29 mm soft dome tweeter, built for larger rooms. It pairs with the DALI SOUND HUB or SOUND HUB COMPACT for stereo or multichannel setups, and is now listed as discontinued.
- Active floorstander with two 50 W peak Class D amplifiers
- Two 7-inch SMC bass/mid drivers, 29 mm soft dome tweeter
- Full active 24-bit DSP crossover at 2,450 Hz
- Wireless input, 24-bit / 96 kHz uncompressed
- Frequency range 31–26,000 Hz (±3 dB), max SPL 108 dB
- Works with DALI SOUND HUB / SOUND HUB COMPACT
Foto’s
8Advertenties
Nog geen advertenties van dit model
Als iemand een OBERON 7 C verkoopt, zie je hier de advertenties en de verkoopgeschiedenis.
Verkoop er zelf eenBeschrijving
The OBERON 7 C is a slim floorstanding speaker with built-in amplification and wireless input. Each speaker contains two 50-watt-peak closed-loop Class D amplifiers, one for the tweeter and one for the bass/mid drivers, with a full active 24-bit DSP crossover set at 2,450 Hz. The amplifiers are specified at 100 dB signal-to-noise.

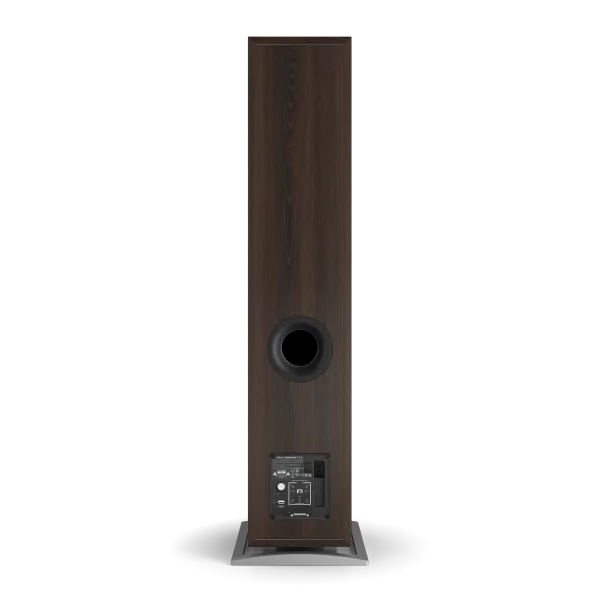

The two 7-inch bass/mid drivers use Soft Magnetic Composite (SMC) pole-pieces, which add non-conductive elements to the magnet structure to lower distortion from eddy currents, flux non-linearity and voice-coil inductance changes. The 29 mm textile soft dome tweeter has a light diaphragm intended to raise sensitivity and power handling. The cabinet is CNC-machined MDF with a large dual-flare rear reflex port and a die-cast plinth with attachment points for floor spikes or compatible feet.
Audio reaches the speaker wirelessly from the DALI SOUND HUB or SOUND HUB COMPACT, as full 24-bit / 96 kHz uncompressed audio. The SOUND HUB COMPACT transmits with a typical latency under 15 ms. The speaker belongs to the DALI EQUI ecosystem and can be used in a stereo pair or in a multichannel surround setup.
Video
Specificaties
- Merk
- DALI
- Model
- OBERON 7 C
- Categorie
- Hi-Fi en home-audio › Speakers
Audio
- Frequency range (±3 dB)
- 31 - 26,000 Hz
- Maximum SPL (@ 1 m)
- 108 dB
- Crossover principle
- Full active 24-bit DSP
- Crossover frequency
- 2,450 Hz
- Signal-to-noise ratio (amplifiers)
- 100 dB
Drivers
- Low/mid frequency drivers
- 2 x 7 inch
- High frequency driver
- 1 x 29 mm soft dome tweeter
- Woofer magnet technology
- Patented SMC (Soft Magnetic Composite)
Amplification
- Amplifier output
- 2 x 50 W
- Amplifier type
- Class D, closed-loop
- Power per amplifier
- 50 W peak
Connectivity
- Wireless input
- Full 24-bit / 96 kHz (not compressed)
- Compatible hubs
- DALI SOUND HUB, SOUND HUB COMPACT
- Wireless latency (SOUND HUB COMPACT)
- Typically less than 15 ms
Physical
- Cabinet construction
- CNC-machined MDF panels
- Bass port
- Dual-flare reflex port, rear
- Base
- Integral die-cast plinth with attachment points for spikes or feet
- Finish shown
- Dark Walnut (Vinyl)
