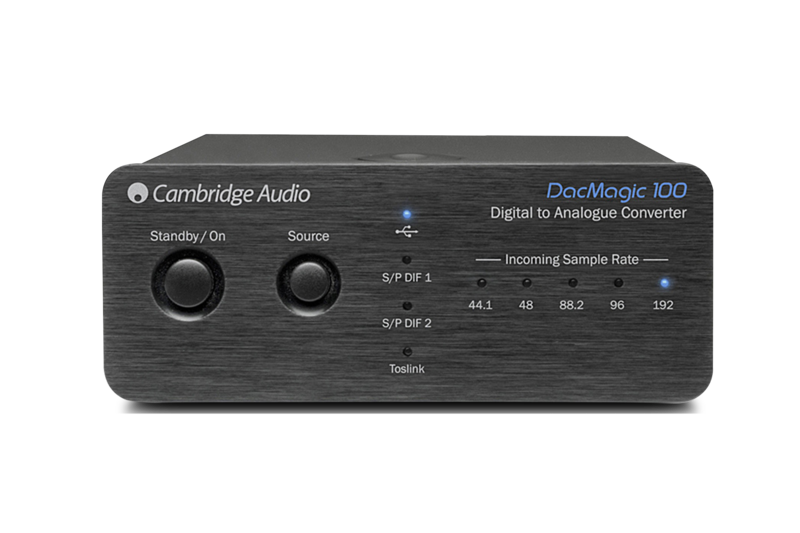

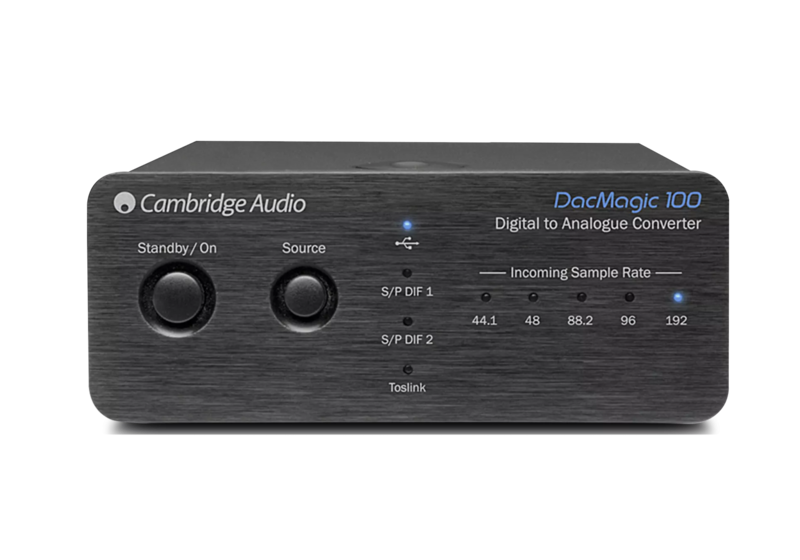

DacMagic 100
The DacMagic 100 is a compact digital-to-analogue converter built around a Wolfson WM8742 24-bit DAC. It suits listeners who want to improve the sound of a computer, TV or CD transport by feeding it through a dedicated converter. The page lists it as archived.
- Wolfson WM8742 24-bit DAC
- Supports sample rates from 32kHz up to 192kHz
- Signal-to-noise ratio of -113dBr
- Unbalanced output up to 2.3V rms
- Compact 106 x 46 x 130mm, 0.5kg

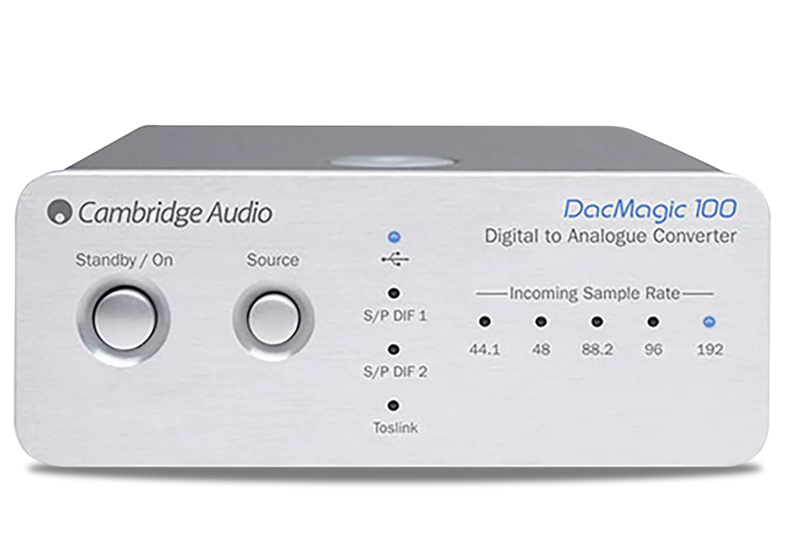

- Available in black or silver
Foto’s
5Advertenties
Nog geen advertenties van dit model
Als iemand een DacMagic 100 verkoopt, zie je hier de advertenties en de verkoopgeschiedenis.
Verkoop er zelf eenBeschrijving
The DacMagic 100 converts digital audio from sources such as a computer, TV or CD transport into an analogue signal. It uses a Wolfson WM8742 24-bit DAC and accepts input word widths of 16 to 24 bit at sampling frequencies from 32kHz up to 192kHz.
Measured figures include a frequency response of 20Hz to 20kHz (±0.1dB), a signal-to-noise ratio of -113dBr, total correlated jitter below 130pS and total harmonic distortion below 0.0025%. Crosstalk is below -130dB at 1kHz and below -112dB at 20kHz. The unbalanced output level is up to 2.3V rms from an output impedance under 50 ohms.
The unit is small, at 106 x 46 x 130mm and 0.5kg, and is supplied in black or silver. It is powered from a 12V DC / 2A supply and draws up to 5W. A USB cable is included in the box alongside the power supply and an adapter.
Video
Specificaties
- Merk
- Cambridge Audio
- Model
- DacMagic 100
- Categorie
- Hi-Fi en home-audio › Overige Hi-Fi
Audio
- Digital to analogue converter
- Wolfson WM8742 24-bit DAC
- Frequency response
- 20Hz to 20kHz (±0.1dB)
- THD @ 1kHz 0dBFs
- <0.0025% 24-bit
- THD @ 1kHz -10dBFs
- <0.0025% 24-bit
- THD @ 20kHz 0dBFs
- <0.0025%
- Signal to noise ratio
- -113dBr
- Total correlated jitter
- <130pS
- Crosstalk @ 1kHz
- < -130dB
- Crosstalk @ 20kHz
- < -112dB
Inputs
- Digital input word widths supported
- 16-24bit
- Digital input sampling frequencies supported
- 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz
Outputs
- Output impedance
- <50ohms
- Max. output level (unbalanced)
- 2.3V rms
Power
- Max. power consumption
- 5W
- Power supply
- 12V DC / 2A
Physical
- Colour
- Black or silver
- Dimensions (WxHxD)
- 106 x 46 x 130mm (4.1 x 1.8 x 5.1")
- Weight
- 0.5Kg (1.1 lbs)
In the box
- Included items
- DacMagic 100 Digital to Analogue Converter, Quick Start Guide, Safety Guide, PSU (12V DC / 2A), Adapter, USB cable
