CXA81 MKII
Integrated stereo amplifier with 80 W per channel into 8 ohms, a built-in ESS Sabre DAC and Bluetooth aptX HD. It suits hi-fi owners who want an analogue and digital source hub with balanced XLR input and a second speaker pair.
- 80 W RMS into 8 Ω, 120 W RMS into 4 Ω
- Class AB design with toroidal transformer
- ESS ES9018K2M DAC, up to 32-bit/384 kHz and DSD256
- Bluetooth 4.2 with aptX HD
- 1 balanced XLR and 4 RCA analogue inputs
- Dual speaker outputs; Roon Tested
Foto’s
8Advertenties
Nog geen advertenties van dit model
Als iemand een CXA81 MKII verkoopt, zie je hier de advertenties en de verkoopgeschiedenis.
Verkoop er zelf eenBeschrijving

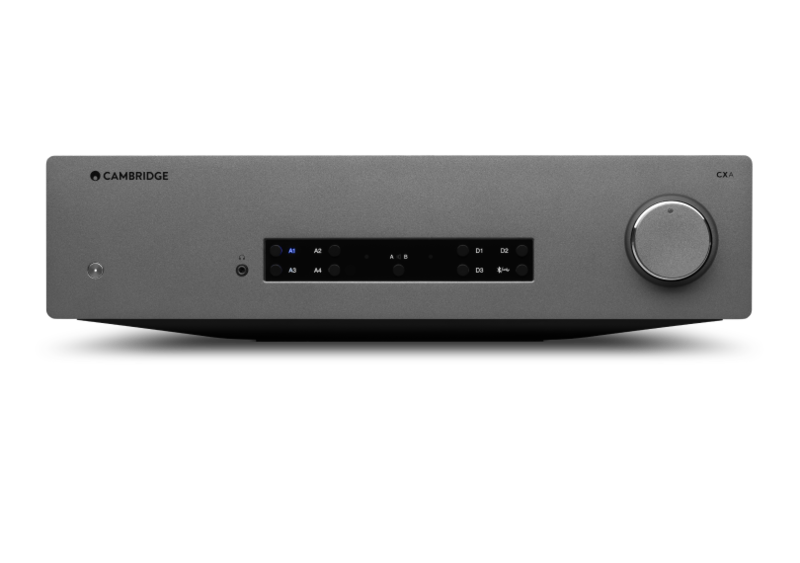

The CXA81 Mk II is a Class AB integrated amplifier built around a toroidal transformer with dual taps. It is rated at 80 W RMS into 8 ohms and 120 W RMS into 4 ohms. The front panel is kept simple, with an aluminium fascia holding power, input selection and a volume control.
An ESS Sabre ES9018K2M DAC handles digital sources. The USB input takes PCM up to 24-bit/384 kHz and DSD256 or DoP256, coaxial S/PDIF accepts PCM up to 192 kHz, and TOSLINK optical accepts PCM up to 96 kHz. Bluetooth 4.2 supports up to aptX HD at 24-bit/48 kHz.
Analogue sources connect through one balanced XLR and four RCA inputs. A second set of speakers can be driven for another room. The amplifier is Roon Tested and ships with a remote control, Bluetooth antenna and control bus cable. It is offered in Lunar grey and Black.
Video
Specificaties
- Merk
- Cambridge Audio
- Model
- CXA81 MKII
- Categorie
- Hi-Fi en home-audio › Versterkers
Audio
- Power output
- 80W RMS into 8 Ohms, 120W RMS into 4 Ohms
- Amplifier class
- Class AB
- DAC
- ESS Sabre ES9018K2M
- Frequency response
- <5Hz– 60kHz +/-1dB
Inputs
- Analogue audio inputs
- 1x balanced XLR, 4 x RCA
- TOSLINK optical
- 16/24bit 32-96kHz PCM only
- S/PDIF coaxial
- 16/24bit 32-192kHz PCM only
- USB
- Audio profile 1.0/2.0 (default 2.0), up to 24-bit 384kHz PCM, up to DSD256 or DoP256
Connectivity
- Bluetooth
- 4.2 A2DP/AVRCP supporting up to aptX HD (24bit 48kHz)
- Bluetooth aptX HD receiver built-in
- Yes
- Roon Tested
- Yes
- Speaker outputs
- Dual speaker outputs
- Remote control
- Yes
Power
- Max power consumption
- 750W
- Standby power consumption
- <0.5W
- Transformer
- Toroidal
Physical
- Dimensions (H x W x D)
- 115 x 430 x 341mm (4.5 x 16.9 x 13.4”)
- Weight
- 8.7kg (19.1lbs)
- Colours
- Lunar grey, Black
In the box
- Box contents
- CXA81 Integrated Amplifier, Power Cable, 3 x AAA Batteries, Remote Control, Control Bus Cable, Bluetooth antenna, Quick Start Guide, Safety Guide
